Profile Projector Series

Versatile – efficient – ergonomic

Affordable entry-level models in genuine Schneider quality.

Whether designed as a benchtop or as a floor-standing model, and whether used for individual measurement operations or more extensive comparison tasks – profile projectors by Dr. Heinrich Schneider Messtechnik provide a wealth of benefits for every user. Whatever the task, they are the epitome of efficiency!

Areas of use

State-of-the-art profile projectors developed by Dr. Heinrich Schneider Messtechnik have earned an outstanding reputation in the world of metrology, setting new standards in terms of accuracy and precision. Designed with consistently high quality, Schneider devices have continuously shown their excellence for decades, and they have proved to be reliable companions in any environment. Whether featuring a 2-axis digital display or Schneider’s M2 Measurement and Analysis Software, and whether or not integrating an edge sensor: all benchtop models are fully functional without any additional accessories being required. Thanks to their intuitive operation, users do not need to undergo tedious familiarisation processes. The combined benefits of the profile projectors thus help users maximise efficiency whilst minimising non-productive times. What better way could there be to save time and money?

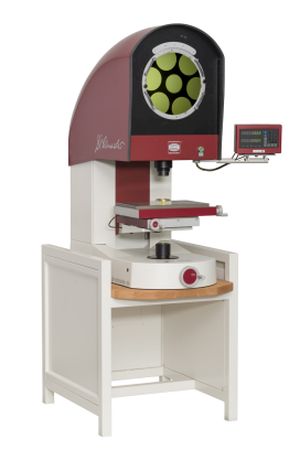

PV 300 – Vertical profile projector

The perfect choice for reliable measurement of plastic parts, seals and gaskets, dies, profiles and other objects.

Standard features of PV 300

300-mm projection screen with crosshairs (graticule)
LED transmitted light illumination

Optional features of PV 300

Triple revolving nosepiece
Digital angle display
360-mm projection screen
Measurement stages with larger working (coverage) areas
Quick-adjustment feature for X and Y

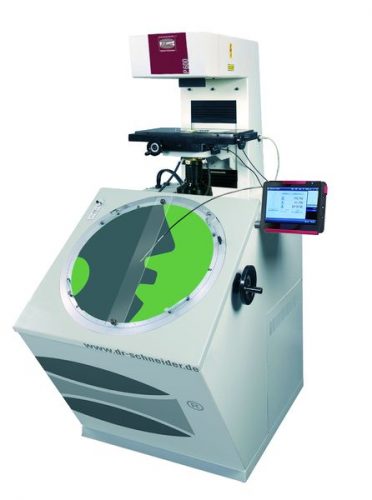

P 600 V – Vertical profile projector in floor-standing design

The perfect choice for reliable measurement of stamped parts, profiles, dies, tools and other objects.

Available variants of P 600 V

Standard package P 600 V equipped with a 2-axis digital display
Standard package P 600 V equipped with M2
Standard package P 600 V equipped with M2 and an external edge sensor

Standard features of P 600 V

600 mm screen with crosshairs (graticule)
LED transmitted light illumination

Optional features of P 600 V

Triple revolving nosepiece
Laterally attached measuring stage equipped with a manually operated rotation axis for tool measurement

Common features of all profile projectors

Special features and benefits

Razor-sharp workpiece contour representation facilitates accurate measurement
Robust design for safe and reliable everyday operation

Standard features

Template holder (support clips)
Protractor, rotatable through 360°, vernier 1’
LED transmitted light illumination

Optional features

Digital angle display for the projection screen
Telecentric objectives (lenses) from 5- to 100-fold magnification

Accessories

Black-out device
Rotary stage
Precision vice
Centre point block or manual rotation axis SK40
Concentricity gauge
Precision jaw chuck with angle indicator
