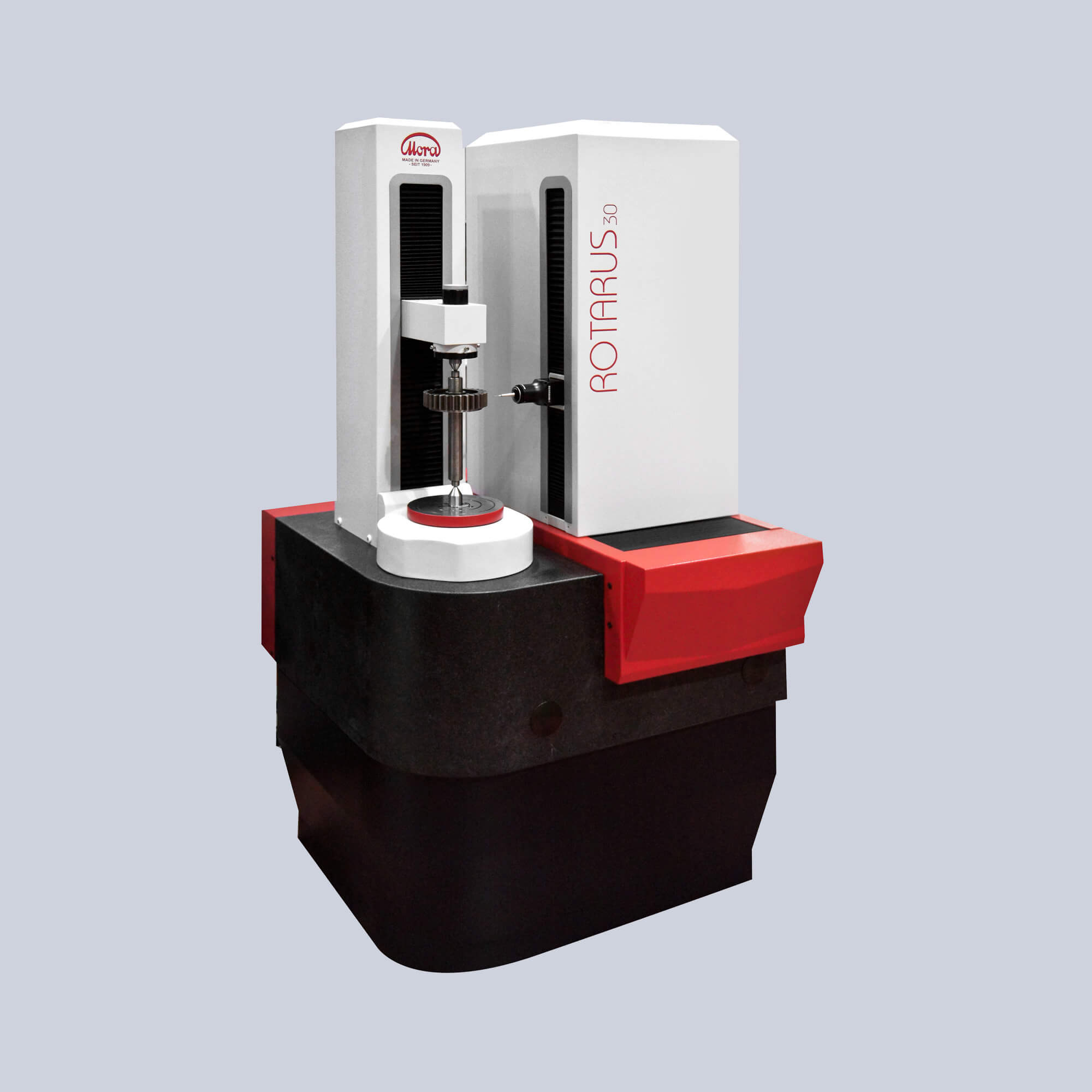

Rotarus
Gear measuring machine

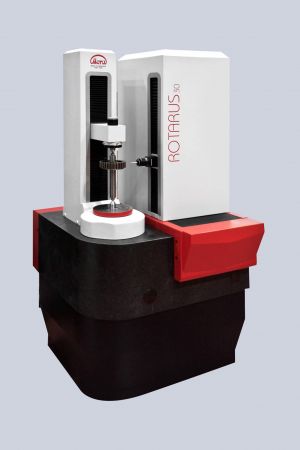

Rotarus - Gear measuring machine by Mora Metrology
In the gear measuring technology a high precision and a powerful measuring software are mainly required. With our gear measuring machine ROTARUS you will get a package which satisfies the highest requirements in accuracy and user-friendliness. ROTARUS with its developable software package AC-Gear solves your requirements in the gear technology, whether by measuring spur gears, bevel gears or worm gears.
| Modell | 30 | 45 | 65 | 80 | 100 | 120 |
| Module | 1~12 | 1~12 | 1~20 | 1~20 | 1~20 | 1~20 |
| Angle of action (left / right) | 0°~90° | 0°~90° | 0°~90° | 0°~90° | 0°~90° | 0°~90° |
| Diameter (mm) | 300 | 450 | 650 | 800 | 1000 | 1200 |
| Max. no. of teeth | 400 | 500 | 500 | 800 | 800 | 800 |
| Pointed width (mm) | 15-500 | 15-800 | 15-1000 | 30-1000 | 30-1000 | 30-1000 |
| Max. load (kg) | 100 | 300 | 500 | 800 | 1000 | 2000 |
