Coordinate measuring device

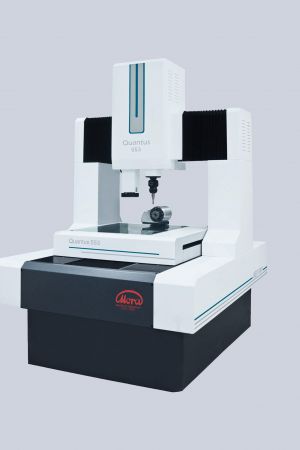

Quantus as a high-precision coordinate measuring device with its up to two Z-axes, combines the advantages of the optical and the classical tactile measuring technology. With pre-stressed air bearing guidance for high dynamic the Quantus has been designed especially for the use in temperature-controlled measuring rooms, which are necessary for highest precision.

Measuring ranges and accuracy

Accuracy: 0,9 + l/300
The stated accuracy true for the smallest measuring range and for a surrounding temperature of 20° C. Special sizes and special accuracies available on request.

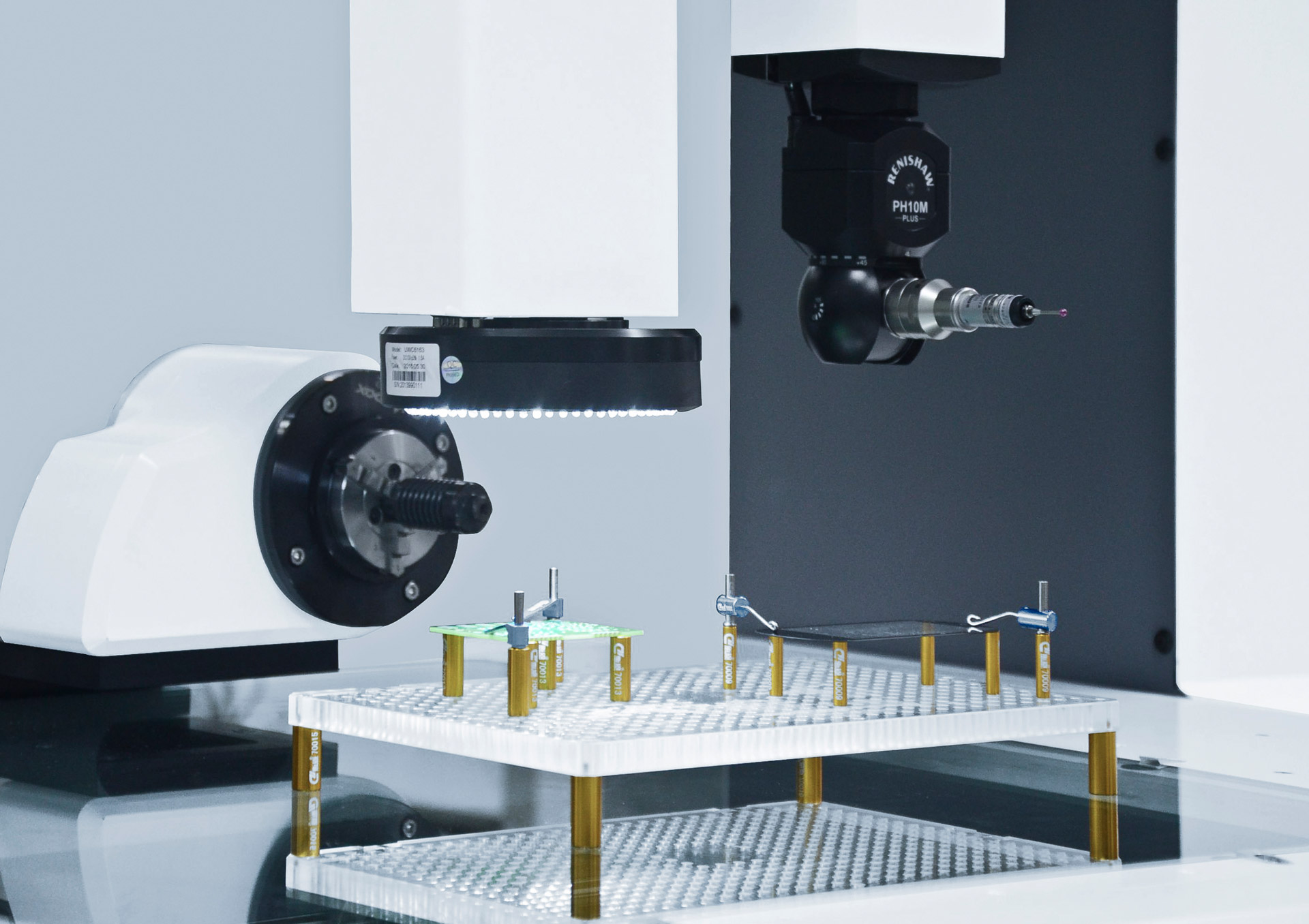

Sensor & Probe Systems

CNC zoom with an optical enlargement area from 0,7x to 4,5x
LED transmitted light
Coaxial LED incident light

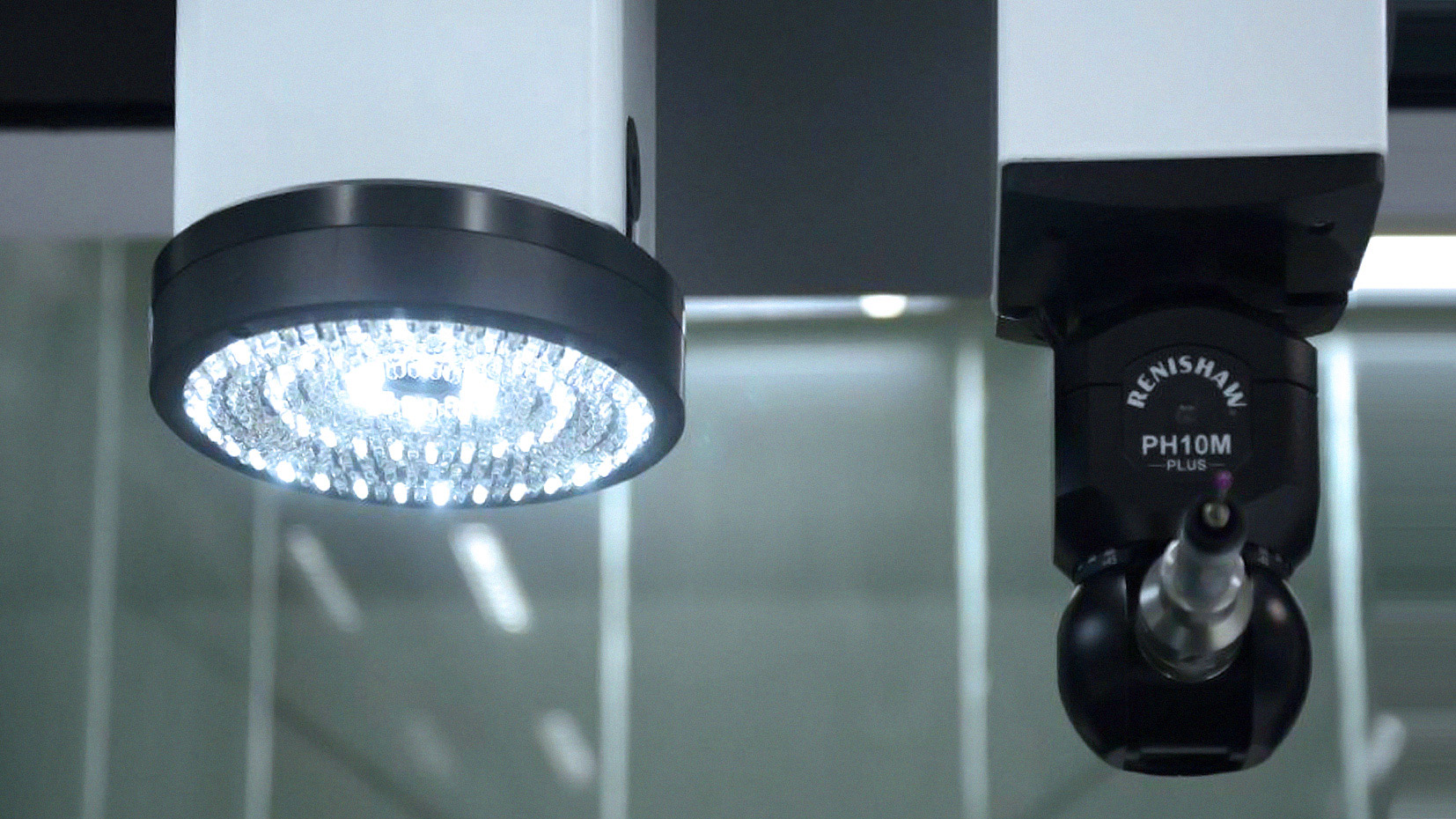

Segmented LED ring light
0.25″ CCD camera

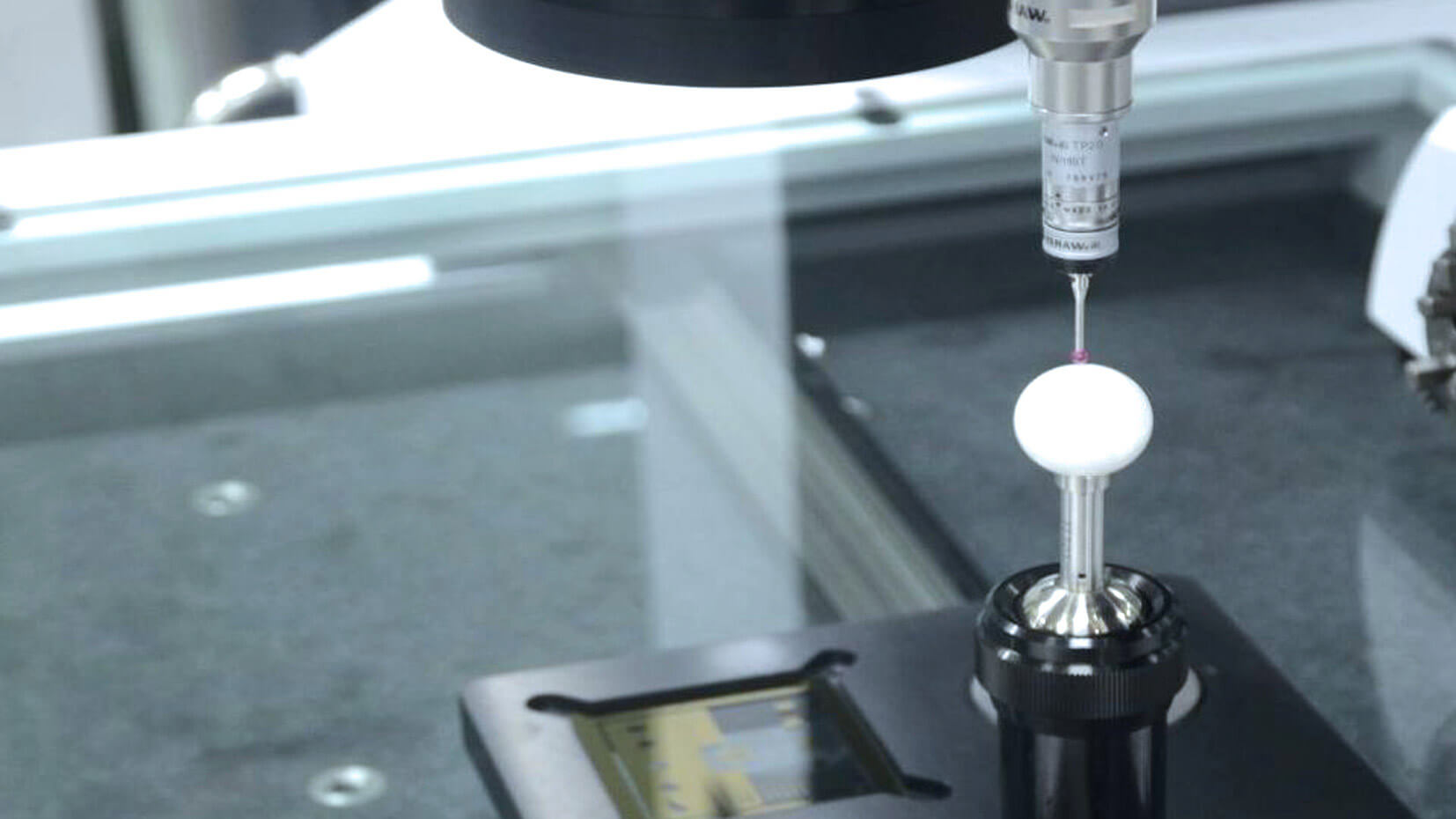

Calibration standard
PH6 fixed probe head
PH10T motorised indexing probe head
PH10M motorized indexing probe head
PH20 continuously indexing probe head
TP20 probe system
TP200 probe system
SP25 scanning probe
Alternative probe systems on request
Change racks for our probe systems on request

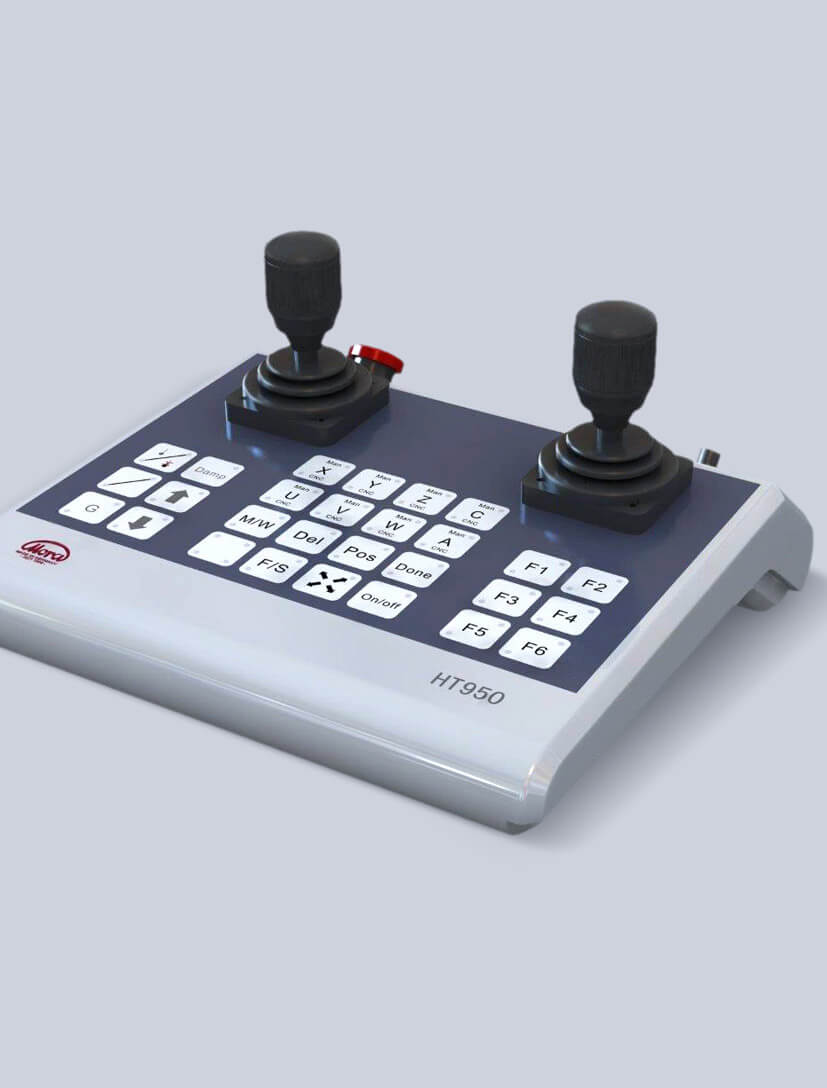

Handbox

Cable Handbox

Software

NET-DMIS
Customer specific software training

Options

CNC zoom up to 12,5x max. optical enlargement
Fixed optic with laser autofocus / laser scanning
Fixed objective lens from 2x to 20x optical resolution
White light sensor

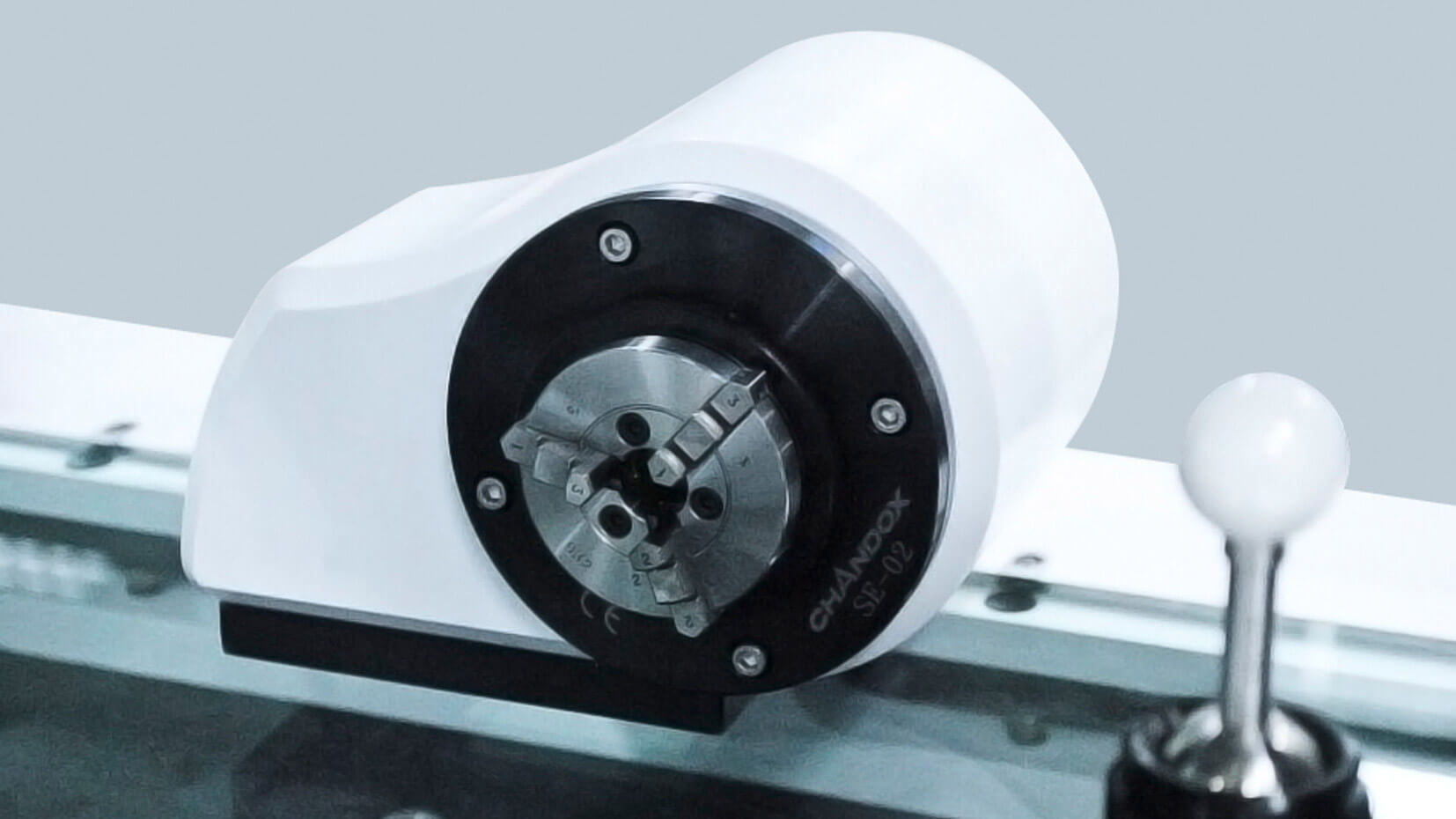

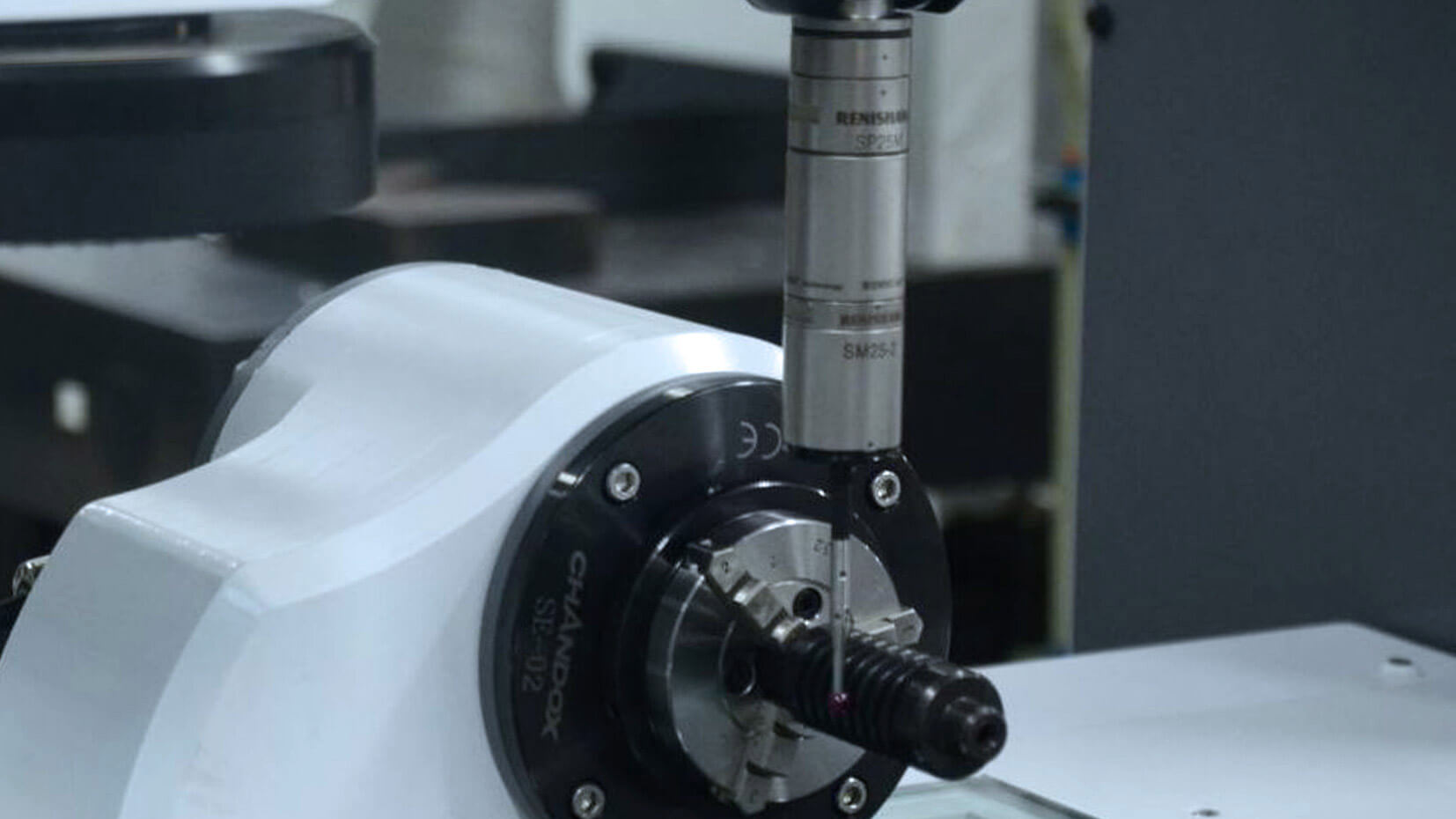

Rotary tables
Customer specific part holder
Chucks
