Layout machine

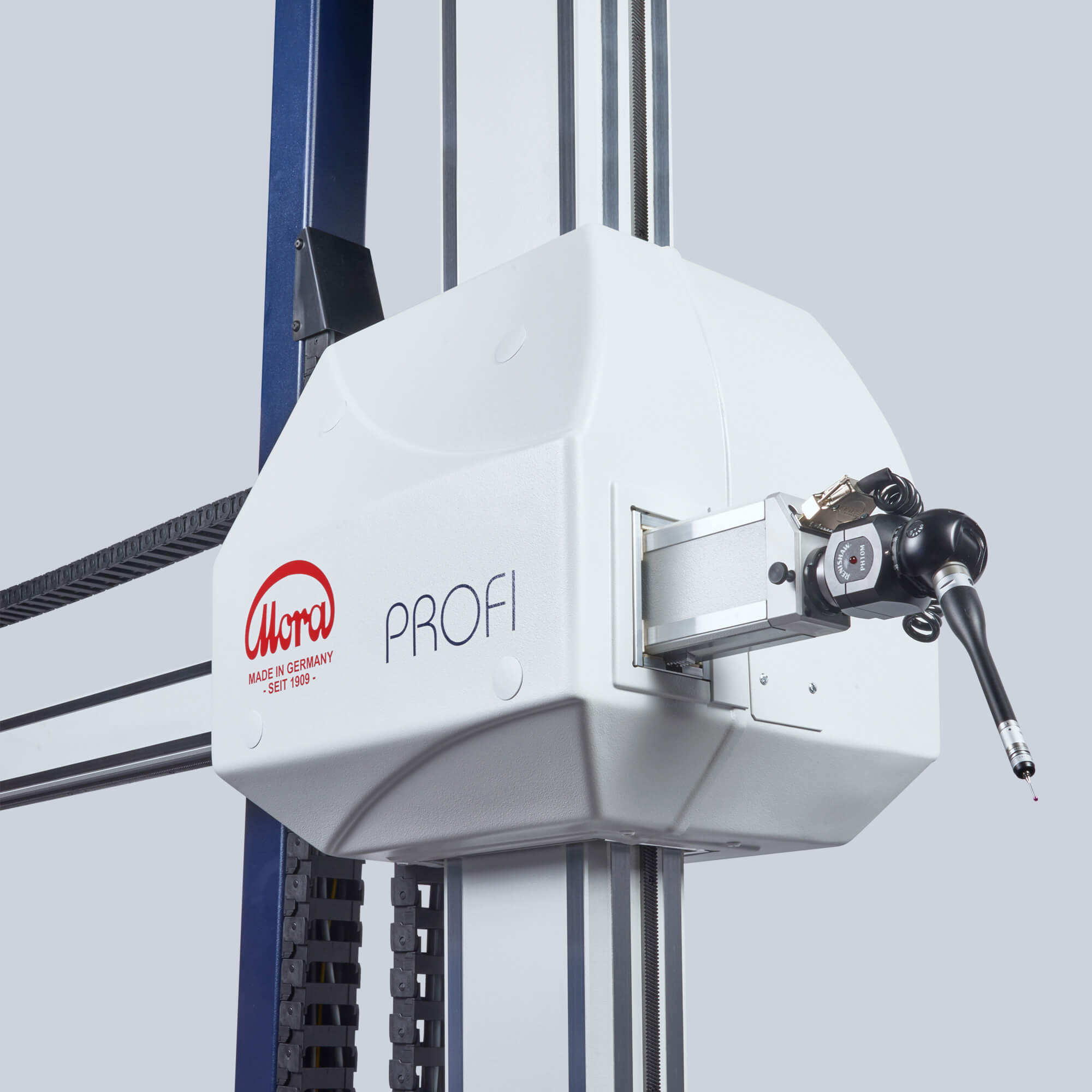

You will find all positive characteristics of the Assistent also at the CNC layout machine Profi, such as a modular machine concept, the mounted-on roller bearings precision guidance and the high-definition scale system. In conjunction with the high-precision direct drive concept and a powerful measuring machine controller the Profi is a high-power CNC layout measuring machine. The disengage of the power units for a manual use of the machine is possible (option). As the Profi is suitable for workshops it is possible to establish the machine in an environment close to the production. Application areas are e. g. design, automobile industry, supplying industry, tool manufacture, mould construction and jig manufacturing.

Measuring ranges and accuracy

Accuracy: 16 + l/100

The stated accuracy true for the smallest measuring range and for a surrounding temperature of 20° C. Special sizes and special accuracies available on request.

Probes Systems

The Assistent is compatible with various probe systems:

PH6 fixed probe head
PH10T motorised indexing probe head
PH10M motorized indexing probe head
TP20 probe system
TP200 probe system
Alternative probe systems on request
Optical 3D sensors on request

Options

Active pneumatic shock absorption
Active temperature compensation in all axes incl. workpiece

Handbox

Cable handbox
Wireless handbox
