Bridge type machine

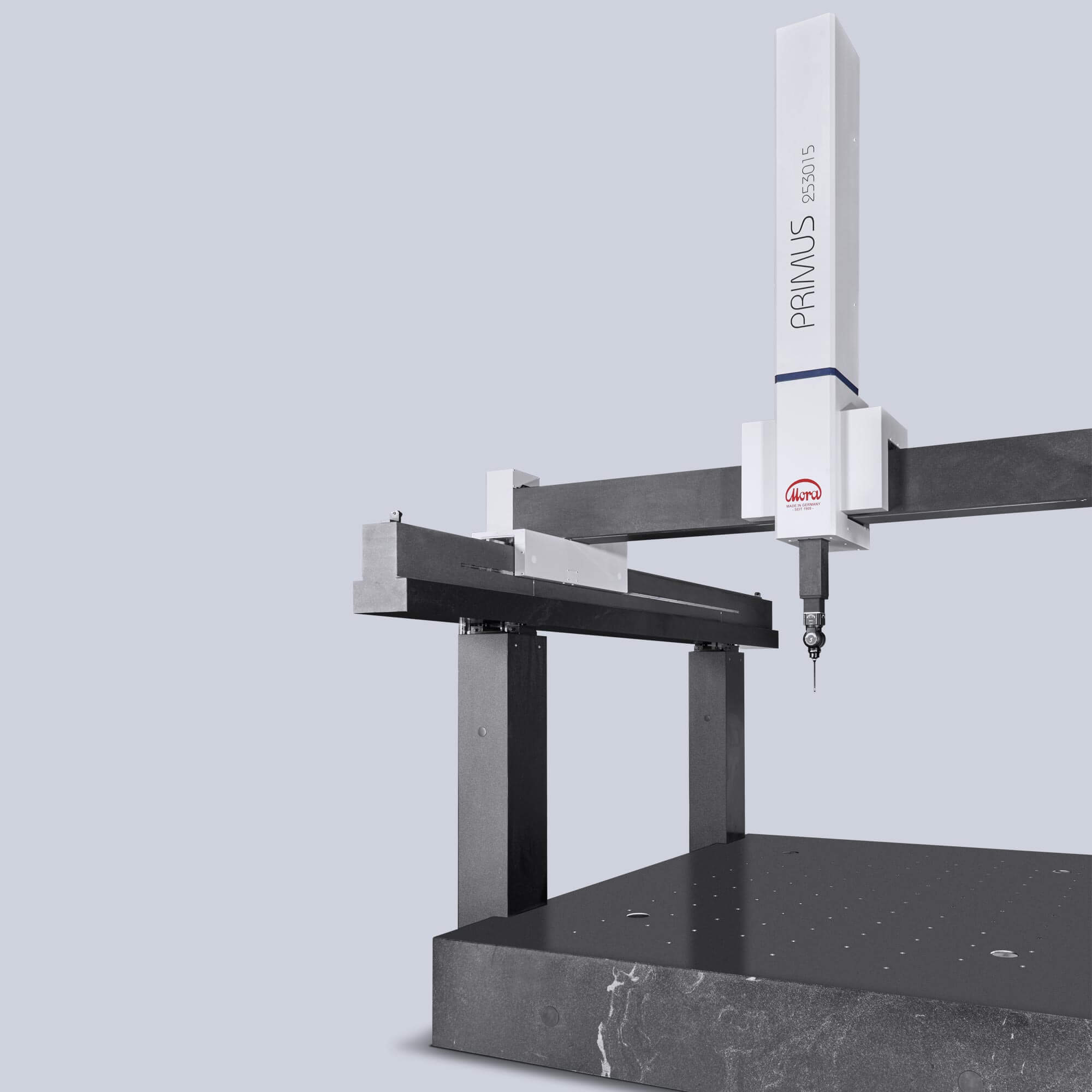

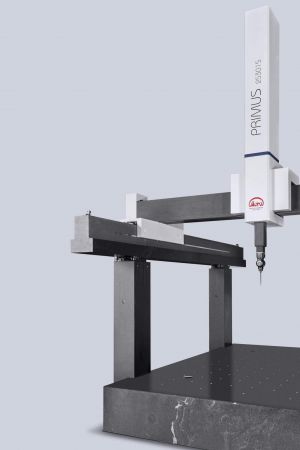

Our bridge type measuring machine Primus L presents a compact and stable machine concept. The mass which is moved is reduced because of the overhead guide axis. That is why we can realise a bigger measuring range of the other axes without resigning the dynamic and accuracy. The Primus L has also, like the Primus, high-precision air bearing guidance and dynamic gears in all axes. The high-definition scale system in conjunction with a powerful controller guarantees a tight accuracy.

Measuring ranges and accuracy

Accuracy: 1,9 + l/300

The stated accuracy true for the smallest measuring range and for a surrounding temperature of 20° C. Special sizes and special accuracies available on request.

Probe Systems

Primus L is compatible with various probe systems:

PH6 fixed probe head
PH10T motorised indexing probe head
PH10M motorized indexing probe head
PH20 continuously indexing probe head
REVO continuously indexing probe head
TP20 probe system
TP200 probe system
SP25 scanning probe
Alternative probe systems on request
Optical 3D sensors on request
Change racks for our probe systems on request

Options

Active pneumatic shock absorption
Active temperature compensation in all axes incl. workpiece
Air preparation facilities (e. g. air dryer)

Delivery systems and palletising systems

Handbox
Cable handbox
Wireless handbox
