Bridge type machines

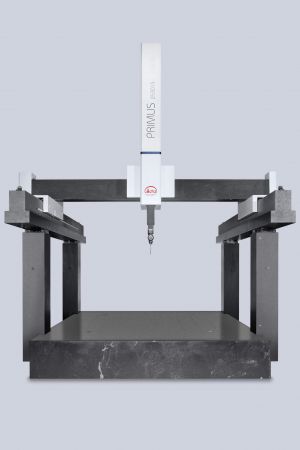

The high-portal measuring machine Primus GT has, compared to the Primus L, two overhead guide axes, which are furnished with a dynamic and high-precision twin drive. Separated by this weight reduction of the mass which is moved we can realise huge measuring ranges without resigning the dynamic and accuracy. The Primus GT has also, beside the Primus and Primus L, high-precision air bearing guidance and dynamic gears in all axes. The high-definition scale system in conjunction with a powerful controller complete the entire machine concept.

Measuring ranges and accuracy

Accuracy: 5,5 + l/1000

The stated accuracy true for the smallest measuring range and for a surrounding temperature of 20° C. Special sizes and special accuracies available on request.

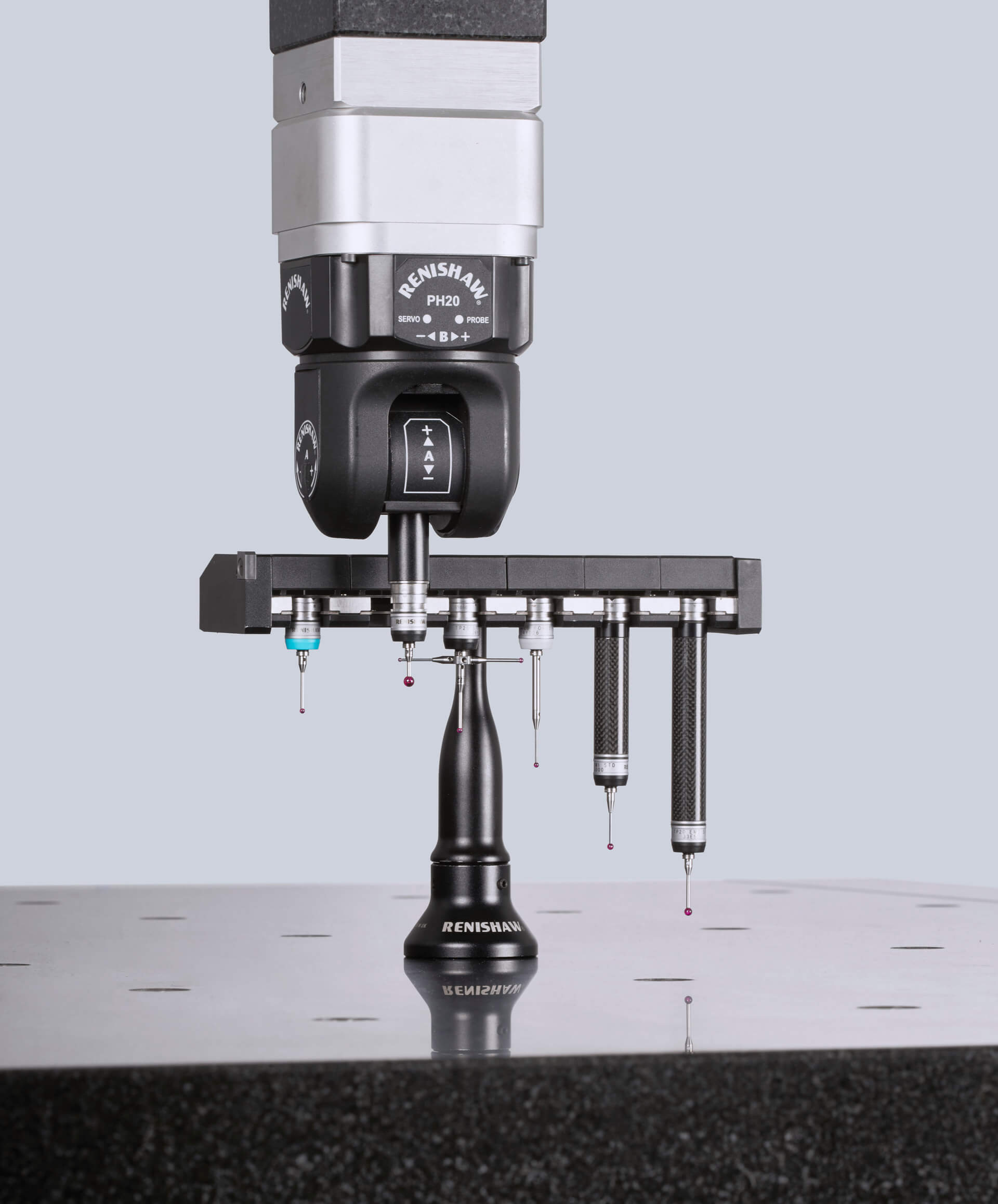

Probe Systems

Primus GT is compatible with various probe systems:

PH6 fixed probe head
PH10T motorised indexing probe head
PH10M motorized indexing probe head
PH20 continuously indexing probe head
REVO continuously indexing probe head
TP20 probe system
TP200 probe system
SP25 scanning probe
Alternative probe systems on request
Optical 3D sensors on request
Change racks for our probe systems on request

Options

Active pneumatic shock absorption
Active temperature compensation in all axes incl. workpiece
Air preparation facilities (e. g. air dryer)

Delivery systems and palletising systems

Handbox
Cable handbox
Wireless handbox
