Layout machine

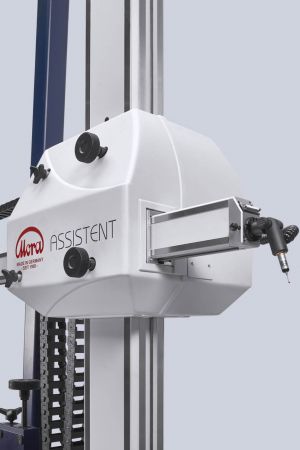

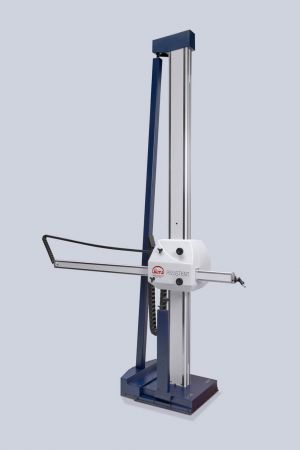

The Assistent is a manual layout machine with a stable and modular machine concept. The machine is easy to run even with huge measuring ranges, because of the mounted-on roller bearings precision guidance. The high-definition scale system, installed in all axes, always sends the exact measured value and so it contributes significantly to the accuracy of the machine. Because of the ergonomic handling of the Assistent it is ideal to perform the most different measuring tasks. The Assistent solves every measuring assignment, whether equipped with a digital counter for scribing or with a probe system and an evaluation

Measuring ranges and accuracy

Accuracy: 16 + l/100

The stated accuracy true for the smallest measuring range and for a surrounding temperature of 20° C. Special sizes and special accuracies available on request.

Probe Systems

The Assistent is compatible with various probe systems:

PH6 fixed probe head
PH10T motorised indexing probe head
PH10M motorized indexing probe head
TP20 probe system
TP200 probe system
Alternative probe systems on request
Optical 3D sensors on request

Options

Active pneumatic shock absorption
Active temperature compensation in all axes incl. workpiece
